@hanktttop said in Cardputer COM Not Working:
@ajb2k3 Yes, I tested the first time this was suggested. In fact, the first cable I was using was just for charging a portable gaming console. Then I tried a few more, inclund cables for smartphones, external drives, etc. And I tested then on their specific devices, everything normal.
No idea why the cheapest one worked on cardputer, though.
I'm glad you have it working now...mark this cable up as Cardputer saver cable
yes Uiflow 2.0 web needs Uiflow 2.0 firmware inside controller.
@mnhj have you tried something simple first to start with it ?

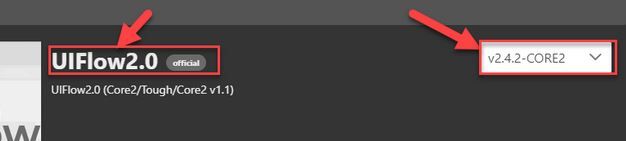

@bdtprez general rule is to keep controller firmware same as web uiflow version, so current web uiflow 2.0 is 2.0.1 and such firmware is available via M5Burner, Uiflow 2.0 has build in firmware manager too. (botom left hand side).
usually when you press "burn" in M5Burner there is red button "erase" thats even without M5 module being detected, before com port selection
is NTP unit/module available in uiflow 2.0 blocks? can only see RTC in Hardware
Does UIFLOW supports Modbus TCP - i'm trying to read Modbus device (meter) on my network by using M5GO on wifi?
@hanktttop said in Cardputer COM Not Working:
New cable, same error. In fact, I just tested it on Fedora 39 (fresh installed), I still haven't been able to put the device in download mode. Maybe I'm forgetting a drive, which makes the device "recognize" the computer as a charger. Still, I reinstalled them all again, with no result.
I have M5Dial with StampS3 at the back...had to remove sticker to see and feel when "boot" button is pressed and hold before usb is plugged in - its almost hard to sense way different from pressing reset button where you can hear click.
With my Dial when say com13 was unresponsive then going in to boot mode made com12 to be available so in short words diff com for programming and different for boot mode - thats my experience with StampS3 from my M5Dial - i had it few times in some unresponsive mode.
Does UIFLOW supports Modbus TCP? Trying to read Modbus device (meter) over WiFi but all I can see is hardwired Modbus using UART on pins 17/16.
@Fernando-Cardoso said in Erase UIFlow 2 from M5Dial:
Hi, i need help.
I want to erase the installed UIFlow 2 from mi M5 Dial. When i open the M5 Burner and try to configure or to Burn, select the COM5 Port and can´t connect to M5Dial.
After try to connect it appears the error message:
A fatal error occurred: Failed to connect to Espressif device: No serial data received.
For troubleshooting steps visit: https://docs.espressif.com/projects/esptool/en/latest/troubleshooting.html
I press and hold the Button before connect M5 Dial to USB Port, try to burn from M5 Burner and the result is the same. it does not automatically connect to the COM5 port.So, how can i erase the installed UIFlow2 from my M5 Dial?
Thank you.
turn M5Dial off, disconnect usb, press and hold boot button at the back while connecting usb, release boot button, now you should see different com port detected an it should be accessible to erase/burn
@aiconnection I believe its something in relation to your other post here in this forum from days back, this post gives a bit more info on what you are trying to do but still lack of details, its hard to advice without knowing what type of hardware you want to use and how you planning to connect to it really.
@aiconnection said in m5stack tough programming help:
@robski can you please guide me resources as to how to work with uiflow 2.0 to setup blocks to read modbus data. I know the communication protocols for my sensor. Being newbie I have no concept of uiflow workability with respect to this unit
Any help or video link would be great
can you read any modbus data from mentioned sensor using any of available modbus test tools? Just to confirm that communication to sensor over modbus is fine.
for start @GhostOfRain install m5burner, log in to your account, look for m5stickC Plus2 latest firmware, burn it to your device.
@aiconnection so your first task would be to read sensor data using Modbus in to M5Tough controller
@SirMichael M5Stack website Products/Sensors/ IO
@jgude do you have M5Burner installed? if so does it detect com port there?
@hoogagroup from project description:
"Software
Copy and rename secrets.yaml.example to secrets.yaml and update it with your WiFi credentials (wifi_ssid and wifi_password).
Build the image with ESPHome
make compile
Upload/flash the firmware to the board.
make upload
By default the project builds for the AtomS3 board. To change your board, you can specify the BOARD parameter. For example for the Olimex ESP32-EVB:
make compile BOARD=esp32-evb
make upload BOARD=esp32-evb
Now when you go to the Home Assistant “Integrations” screen (under “Configuration” panel), you should see the ESPHome device show up in the discovered section (although this can take up to 5 minutes). Alternatively, you can manually add the device by clicking “CONFIGURE” on the ESPHome integration and entering “<NODE_NAME>.local” as the host."
so you need to see ESPHome for it.
@brunobeat Have you checked shared projects in Uiflow2 / project zone. There are some RFID examples maybe not with cardputer but you find some with M5Dial M5Core etc
@kawabatapaper when you have M5Burner open and you are connecting your M5Dial to usb are there any com ports detected - should be detection of 2 ports shown in top right hand corner for few seconds, first one is "hidden" boot com port used when rear boot button is held
