For what it worth, I make it work by switching to micropython and replacing
from base import AtomicStepmotorBase
by a modified version of stepmotor.py before downloading the code
If you like using blockly, you need to paste modification each time though...
For what it worth, I make it work by switching to micropython and replacing
from base import AtomicStepmotorBase
by a modified version of stepmotor.py before downloading the code
If you like using blockly, you need to paste modification each time though...
Hi everyone
I am trying to use an Atomic stepmotor base (SKU:A132) with an Atom lite (SKU:C008) Uiflow2.0 (v2.2.8) but it does not work.
I get this error message :
File "base/stepmotor.py", line 1, in init ValueError: invalid pin
I think pins are sets correctly :

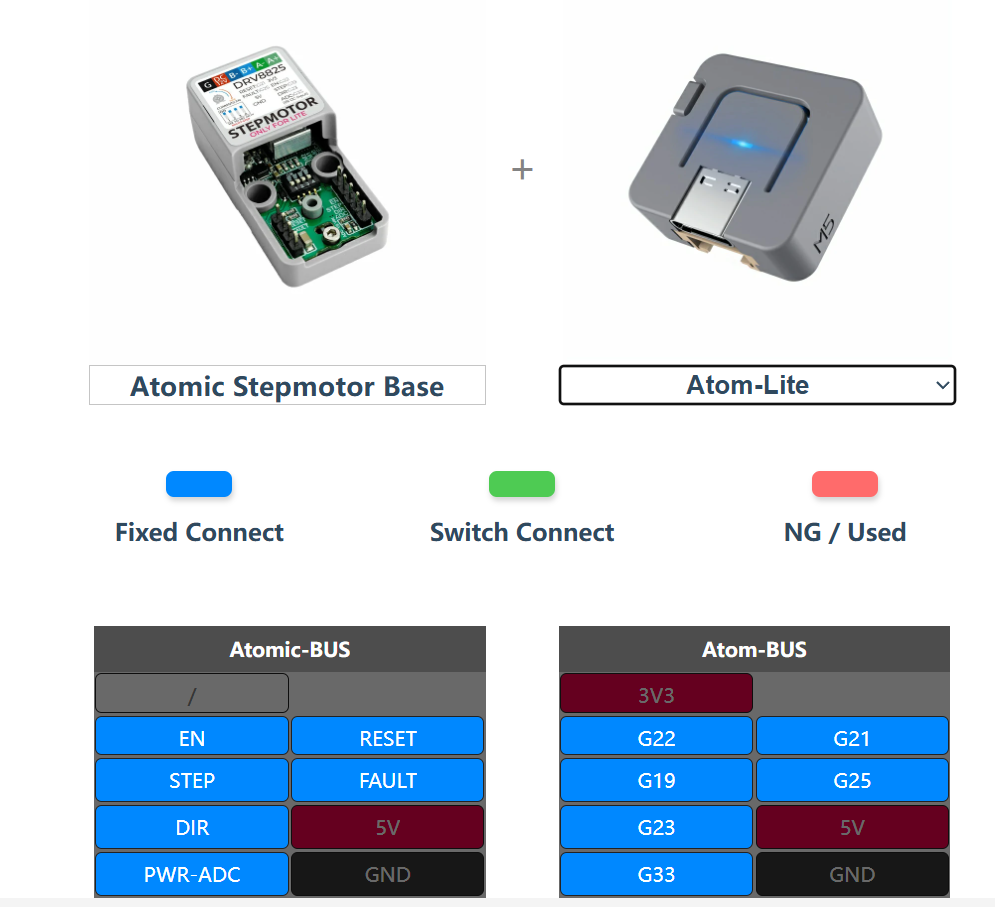

base_stepmotor = AtomicStepmotorBase(22, 23, 19, 25, 21)
I do not understand why it's throwing error and what i am doing wrong ?
Hello
I am new to this and I have got some questions about the Atom Step Motor base for Atom lite (sku: K047).
Why the UiFlow sample code is not using the blocks store in BASE/STEPMOTOR in UiFlow IDE ?
Why is there a block "init step type" in BASE/STEPMOTOR in UiFlow IDE to set microstep while there is dip switch on board? Which method prevail?
In the sample code, I suppose ADC to reflect actual current in the coils. Am I right ?
Thx for your answers
